CCD KEYHOLE Wide View Angle Backup Camera

$94.99

This product is currently out of stock

Product Information



  • One CCD COLOR Weather/Water-Proof Key Hole Vehicle Rear View Camera (Model CW134076C) With Wide View Angle. Approx. 0.9" x 2.5" for cylinder part.
  • Camera comes with angle control rings, fix ring, RCA video output socket, and power input.
  • All the necessary cable hookups and Male Power Lead Plug to get your camera up and running.

 NOTE: LCD VIEWING MONITOR SOLD SEPARATELY.  BUT WE HAVE A GREAT ONE FOR YOU THAT YOU CAN PURCHASE.  PLEASE VISIT OUR PRODUCT CATEGORY TFT LCD MONITORS.

Camera Cable Connectors

Camera Cable Connectors

Camera Cable Connectors



Camera Cable Connectors



Camera Cable Connectors



Camera Cable Connectors



Camera Cable Connectors



The Camera Has The Following Special Features

  • Durable, rustproof stainless steel bodied KEY HOLE camera with FLUSH MOUNT
  • Water-proof without extra housing: for part (camera glass lens) exposed to outside ONLY and for normal usage ONLY. Camera body and cables are not designed to be exposed to outside and must be properly sealed against moisture. Incorrect installation and using the product in opposition to the manufacturer's instructions MAY result in loosing water-proof feature.
  • CCD color, 1/3" CCD image sensor
  • High resolution 420 TV lines
  • User adjust left/right mirror reverse image - can set to display a reversed camera image on the monitor (for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror) OR a normal view on the monitor (for vehicle front viewing) - connect two-pin jumper connector to the mirror reverse wire to set for normal view
  • 120 Degree Wide Angle View - Essential to get a wide picture view especially when backing up a towed vehicle or a vehicle with wide turning radius
  • Standard RCA video output - When in need of replacement cables you can simply buy them off the shelves of any store selling video cables.  The connectors are compatible with this product as they would be with any VCR, DVD player, TV, or Monitor.
  • Uses standard 12V DC power supply found in most land vehicles
  • Caution: The camera is designed to operate within a range of constantly changing voltage levels produced by a vehicle's battery and alternator (post engine ignition) under normal use conditions. Some vehicles have a very high momentary voltage at the vehicle starting time and the excessive voltage generation at that time might cause damage to the camera. If your vehicle tends to emit high voltage levels during ignition you will need to install a fuse/voltage regulator/etc. to protect your camera. Please consult with a professional vehicle video equipment installers if needed.

Model Technical Specifications

CW134087CAI Rear View Camera Dimension

Approx. 0.9" x 2.5" for cylinder part


Image Sensor

1/3" SHARP CCD Sensor

Horizontal Resolution

420 TV Lines

Effective Pixels

512(H) x 492(V)

Minimum Illumination

0.5 LUX / F:2.0

Sensing Area

3.6mm x 2.7mm

Sync System

Internal

Video Out Signal

1.0 Vp-p 75 ohm

Power Supply

DC 12V

AGC

Auto

S/N Ratio

Better than 48dB

Electronic Shutter

1/60 - 1/100,000 second

Weight

Approx 50 g

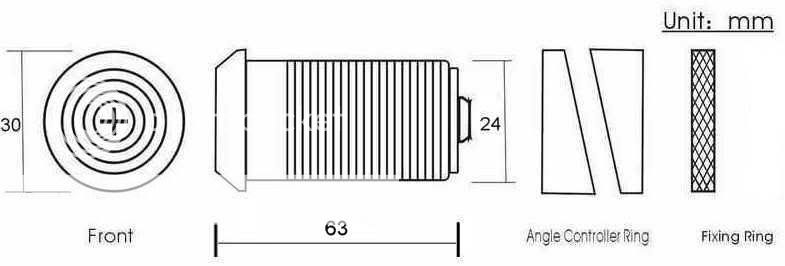

Dimensions (see picture above)

? 24 mm x 63 mm (approx. ? 0.9" x 2.5")

Built-in Lens

f=2.8mm / F=2.0

Cable Output

Standard RCA Video & DC Jack

BLC

Auto

White Balance

Auto

TV System

NTSC

Operating Temperature

14°F - 122°F (-10°C - 50°C) / RH 95% Max

Storage Temperature

-4°F - 140°F (-20°C - 60°C) / RH 95% Max

Current Consumption

Max 100mA

Lens Angel

Wide View Angel 120°

Product Code: CW134076C
